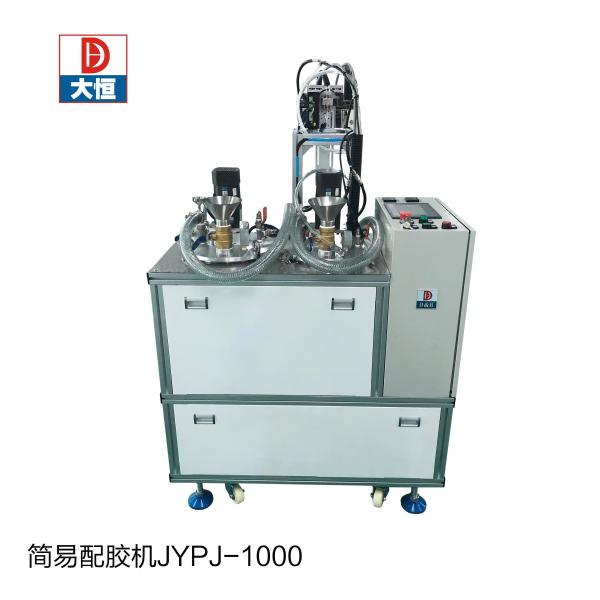

automatic resin dispensing mixer machine

| Machine Model | PJL-1000 |
| Dimension | 1500*1100*1600mm |
| XYZ working area | |
| AB ration | 1:1 to 20:1 |
| Movement track | Dot/Line/Arc/Circle |
| 3 axis Speed | |
| Glue speed | 0.5-24g/s |
| Accuracy | |
| Program | 99pcs |
| Metering pump | 3.6cc gear pump / 48cc screw pump / 200ml dual plunge pump |
| Viscosity | <30,000 cps |
| Operation software | Patent English operation software |
| Flow control | Digital input |
| 3 axis Programming method | Teaching programming |
| Automated control system | PLC / Touch screen |
| Glue control system | AB glue suction valve to achieve independent operation of AB glue |
| Mixed mode | Dynamic and static optional, instant mixing |
| Glue tank | Stainless steel 40L, 25L, or 10L |
| Input air pressure | 0.5-0.7 Mpa |
| Vacuum pump | 4L/S |
| Cleaning liquid tank | Stainless steel 7L |
| Power supply | 220V/380V 1200W (not including heating power |
| Main Spare Parts | quantity | Brand |
| PLC | 1 set | Panasonic |
| Software system | 1 set | Daheng patent |
| Industrial human-computer interface touch screen | 1 pc | MCGS |
| Metering pump motor / Driver | 2sets | Lakeside |
| Photoelectric proximity switch | 8 sets | YAMATAKE |
| Metering pump bearing | 4 sets | NSK |
| Pneumatic component (solenoid/pressure regulating valve/Pneumatic duplex) | pcs | Air tac |
| Electronic component (relay/contactor/power supply/leakage switch) | pcs | CHNT |
| Synchronous belt | 2 sets | PMI-GROUP |
| Motor/driver | 2 sets | Lakeside |
| Z axis | ||
| AB tank stirring motor | 2 pcs | DDK |
| metering pump | 1 set | Daheng patent |
| metering pump | 1 set | Daheng patent |
| Dynamic double liquid valve | 1 set | Daheng patent |
| High quality Glue tube | 2 pcs | Made in China |


|
